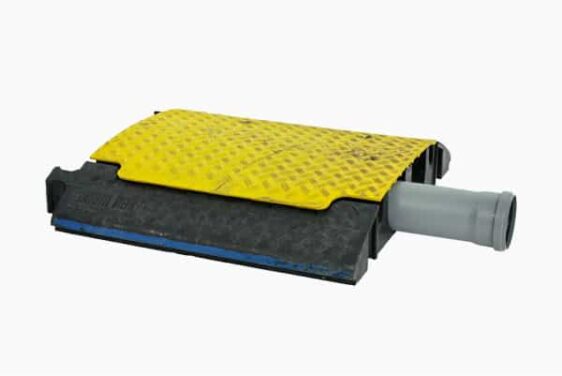

Cable Protector Defender Ultra L

  • Cable protector Defender Ultra L
  • Heavy duty cable protector made of black, recyclable polyurethane for demanding applications
  • Non-slip, yellow polyethylene lidmaker with high warning effect and secure closure
  • patented, self-cleaning lid hinge

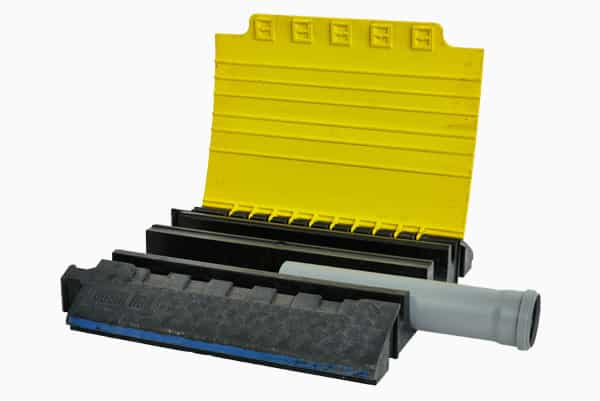

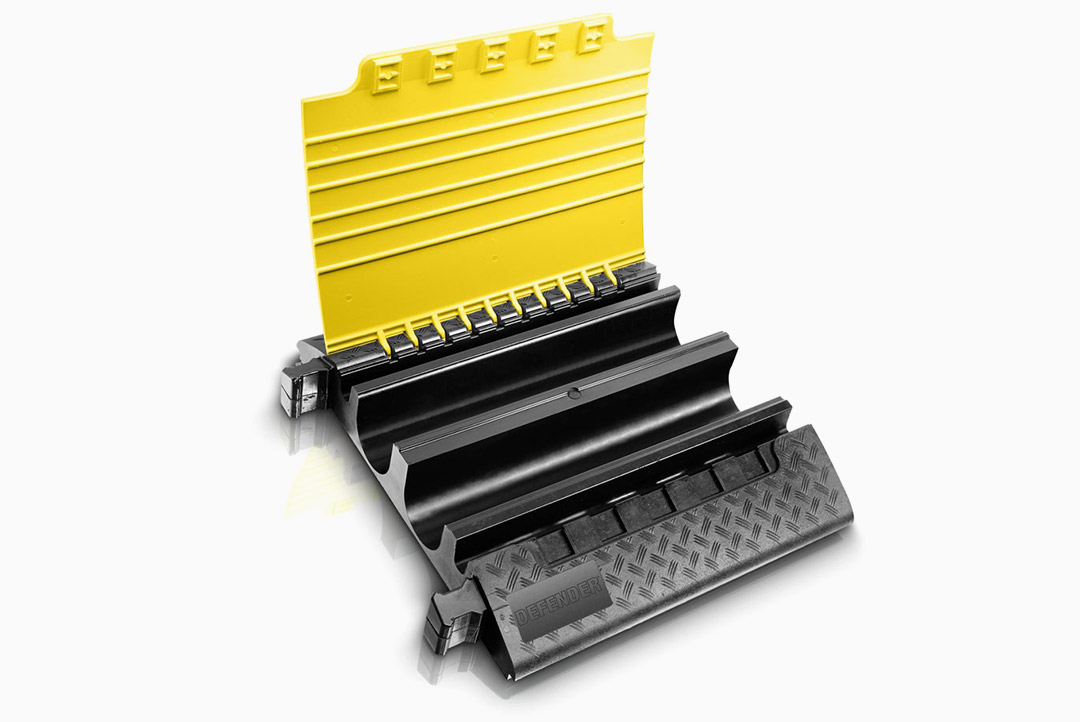

  • 4 channels: 2 channels each 120 x 113 mm and 33 x 50 mm
  • Two channels suitable for A-type suction hoses and multipin connectors
  • Load bearing capacity approx. 5 t / 20 x 20 cm
  • fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • resistant against oil, acid, solvents and petrol
  • reliable protection for cables, hoses and people for indoor and outdoor use

Technical Details
Width 0.78 m
Length 0.70 m
Length with connector 0.78 m
Height 0.14 m
Weight 30.5 kg
Width channel 1 33 mm
Height channel 1 50 mm
Width channel 2 120 mm
Height channel 2 113 mm
Width channel 3 120 mm
Height channel 3 113 mm
Width channel 4 33 mm
Height channel 4 50 mm
CAD drawing

Cable Protector Defender Ultra L – CAD-Zeichnung (PDF)

Transport

Packaging Unit: max. 8 items per Euro skeleton container

Areas of use
Cable Protector Defender Ultra L – 2 extra-large cable crossovers

Defender Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements.

The load-bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use.
